1-1718806-1
Manufacturer:
TE Connectivity
Mfr.Part #:
1-1718806-1
Datasheet:
Description:

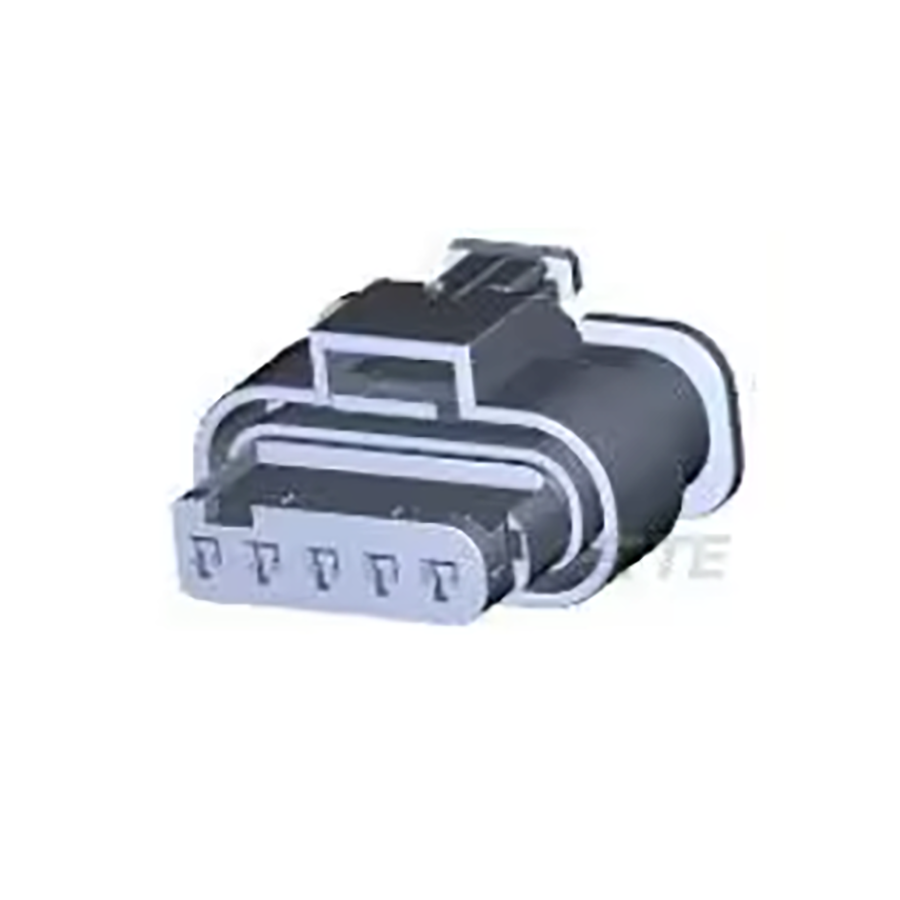

Headers and Wire Housings Cable, Free Hanging Receptacle, Socket Number of Positions:5 Pitch:3.9878 mm
| Parameter | Value |
|---|---|
| Length | 28.702 mm |
| Width | 26.4922 mm |
| Termination | Crimp |
| Max Operating Temperature | 130 °C |
| Min Operating Temperature | -40 °C |
| Height | 16.5 mm |
| Material | Polyamide |
| Packaging | Bulk |
| Depth | 26.5 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Pitch | 3.9878 mm |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Black |
| Gender | Female |
| Number of Contacts | 5 |
| ELV | Compliant |
| Connector Type | Receptacle, Socket |
| Wire/Cable Gauge | 17 AWG |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Housing Material | Polyamide |
| Fastening Type | Latch |
| Circuit Application | Signal |
| Housing Color | Black |
| Mating Tab Width | 1.1938 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Polarized | Yes |
| Hybrid Connector | Yes |
| Serviceable | Yes |
Stock: 414
Distributors
pcbx
pcbxUnit Price$1.08960
Ext.Price$1.08960
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.08960 | $1.08960 |
| 10 | $0.89587 | $8.95870 |
| 25 | $0.81556 | $20.38900 |
| 50 | $0.74245 | $37.12250 |
| 100 | $0.67590 | $67.59000 |
| 300 | $0.64858 | $194.57400 |
| 500 | $0.62235 | $311.17500 |
| 1000 | $0.59791 | $597.91000 |
